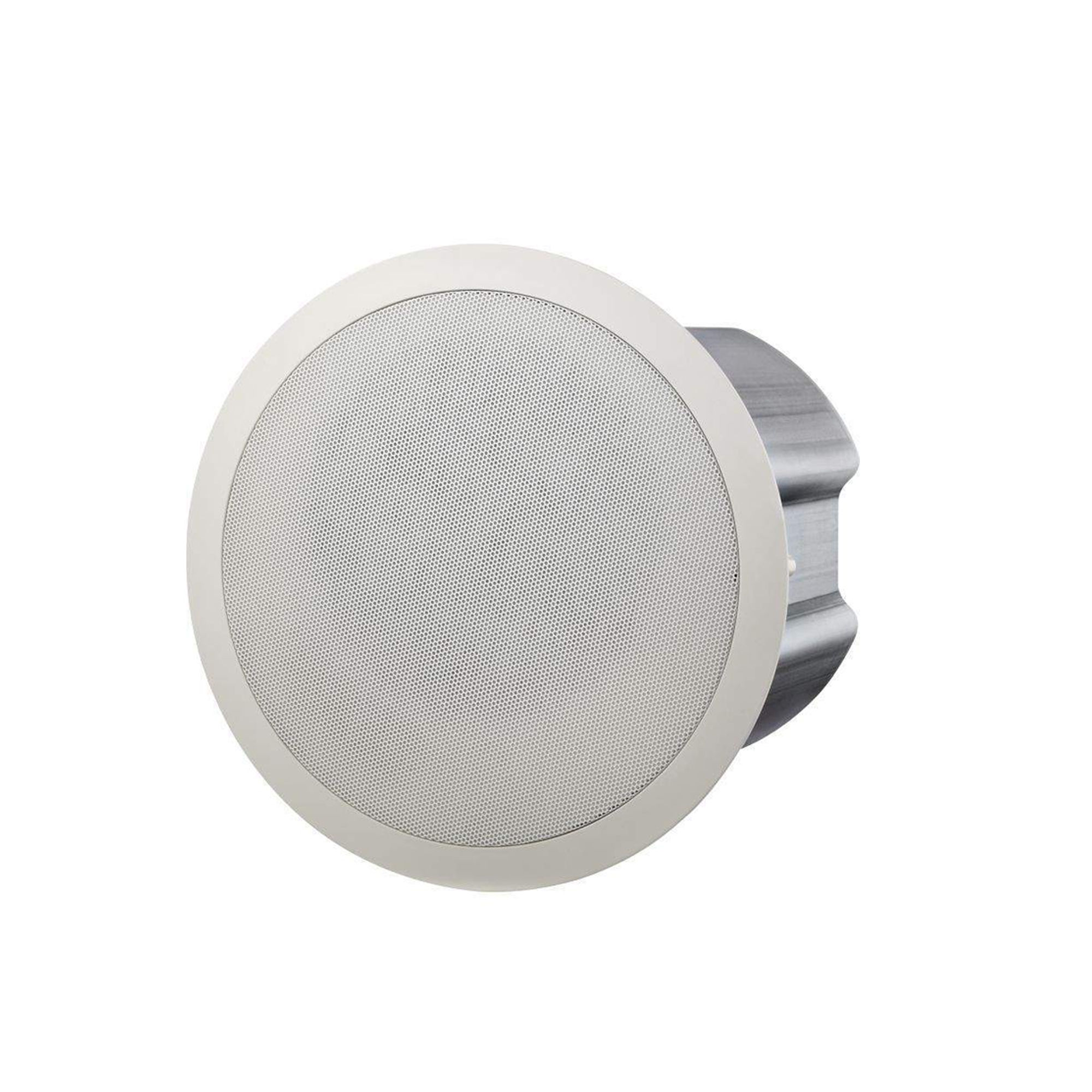

Electro Voice EVID C4,2D
The Electrovoice EVID C4.2D is a dual impedance 4" two way ceiling speaker with fire rated terminals.SOLD BY AND PRICED PER PAIR.Only one pair only at this very special price.The compact design fits in tight spaces and is ported and tuned to provide a surprising bass response and excellent bandwidth.Its 4" weatherized woofer and waveguide coupled titanium coated dome tweeter give smooth, wide frequency response.Designed for use in air handling spaces.An easy 3-point mounting system facilitates quick installation. Supplied with mounting support ring and tile rails. No additional accessories needed for most installations.
4” coaxial two-way.Waveguide coupled Ti tweeter.Full bandwidth overload protection.Front baffl e wattage tap adjustment.Integrated low loss matching transformer allows for either 70v/100v or 8Ω operation. Includes tile bridge and mounting ring for easy installation. Integrated ported enclosure for extended bass response
Frequency Range (-10 dB): 65 – 20000kHz
Weatherized: No
HF Transducer: 0.75-inch (19 mm) Ti Mylar Laminate Dome
Speaker Type: Ported cabinet, internally damped, two-way (passive crossover included)
LF Transducer: 4-inch polypropylene cone
Power Rating: 200W
System Power Handling (Continuous/Program/Peak): 50Watts (Overload Protected)
Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
Grille: Powder-coated steel
Sensitivity 1 W/1 m: 86dB
Available Color White (paintable surface)
Height 6.93″ (176mm)
Input Formats: 8ω, 70 V, 100 V
Coverage (Nominal -6 dB): 130 (conical)
Mounting Systems: Integrated 3-point toggle anchors
Chassis Size: 4″ (101.6mm)
Regulatory Approvals: UL1480; UL2043
Diameter (Max): 7.13″ (181mm)
Transformer Taps (Transformer Version Only): (1.88 – 70 V only), 3.75, 7.5, 15, 30
Transformer: Yes
Dimensions: 419 x 228 x 298 mm
Weight: 2.7kg
