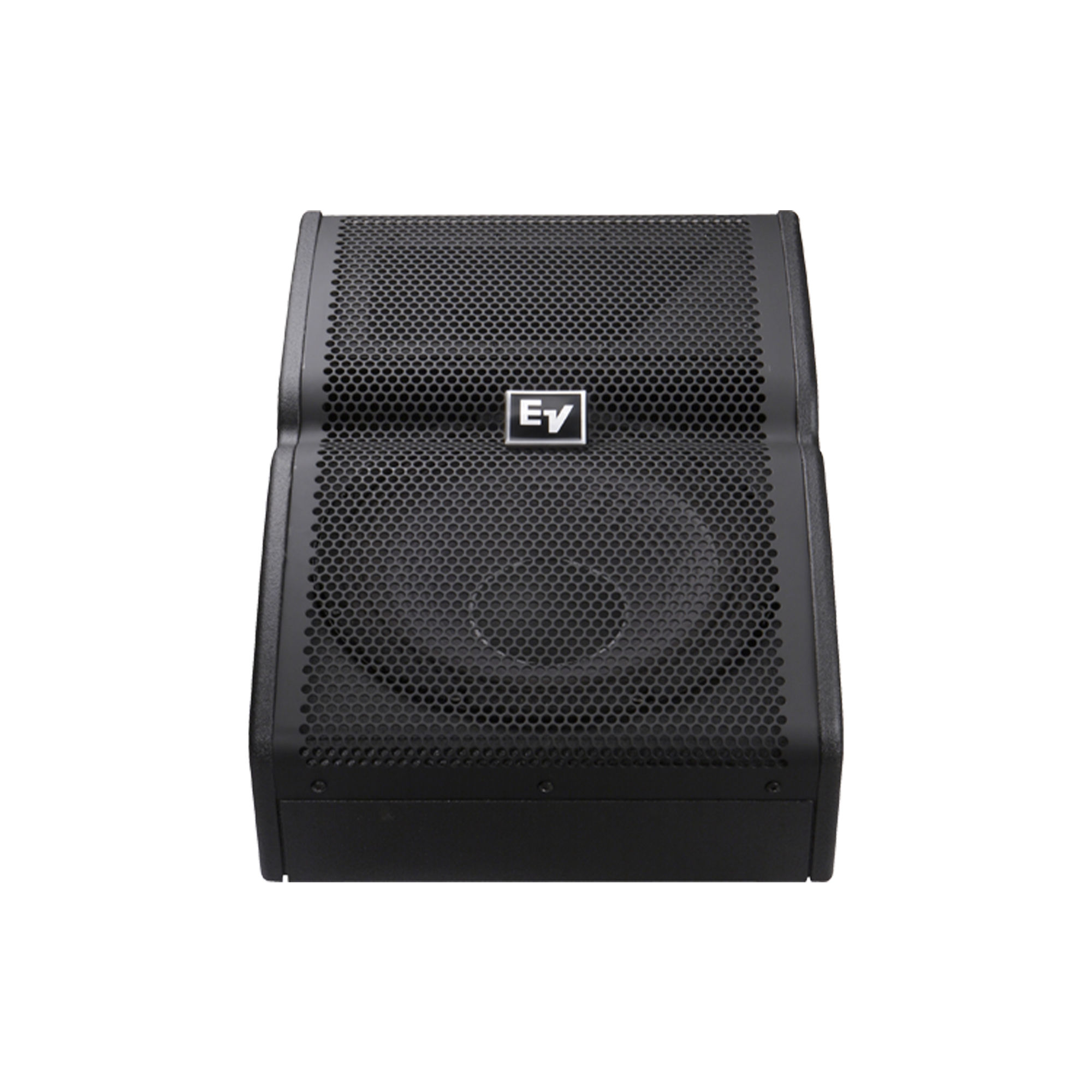

Electro Voice TX-1152FM
Two-way, high-output design
Vented LF enclosure
Neutrik Speakon paralleled pass-through connectors
Two integrated handles
Ideal for small-to-medium stages
Signal Synchronized Transducers for woofer/tweeter alignment
Ultra low-distortion SMX2151 woofer with fully symmetric drive
1.25-inch DH3/2010A titanium HF compression driver
Constant-directivity 90º H x 50º V horn
Integrated 24 dB/octave crossover with HF protection
100 dB sensitivity, 133 dB maximum SPL
Power handling: 500 W continuous, 2000 W peak
Black EVCoat finish
Our Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.
Frequency Range (-10 dB): 45 - 20000kHz
Flying: No
Minimum Impedance: 6.2Ω
Nominal Impedance (Passive): 8Ω
HF Transducer: DH3
Speaker Type: Monitor
Woofer Size: 15inch
Powered or Passive: Passive
Frequency Response (-3 dB)¹: 65 - 20000Hz
Max. SPL/1m (calc)²: 133dB
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 50°
LF Transducer: SMX2151
Power Rating: 2000W
System Power Handling (Continuous/Program/Peak): 500Watts
Rotatable Horn No
Crossover Frequency: 1750Hz
Enclosure Material: Plywood and MDF with EVCOAT
Available Color Black
Sensitivity 1 W/1 m: 100dB
Recommended High-Pass Frequency: 45Hz
Internal Crossover: Yes
Family: Tour X
Input Connections: Parallel Neutrik® NL4
Dimensions: 475 x 439 x 655mm
Weight: 23,5 kg
