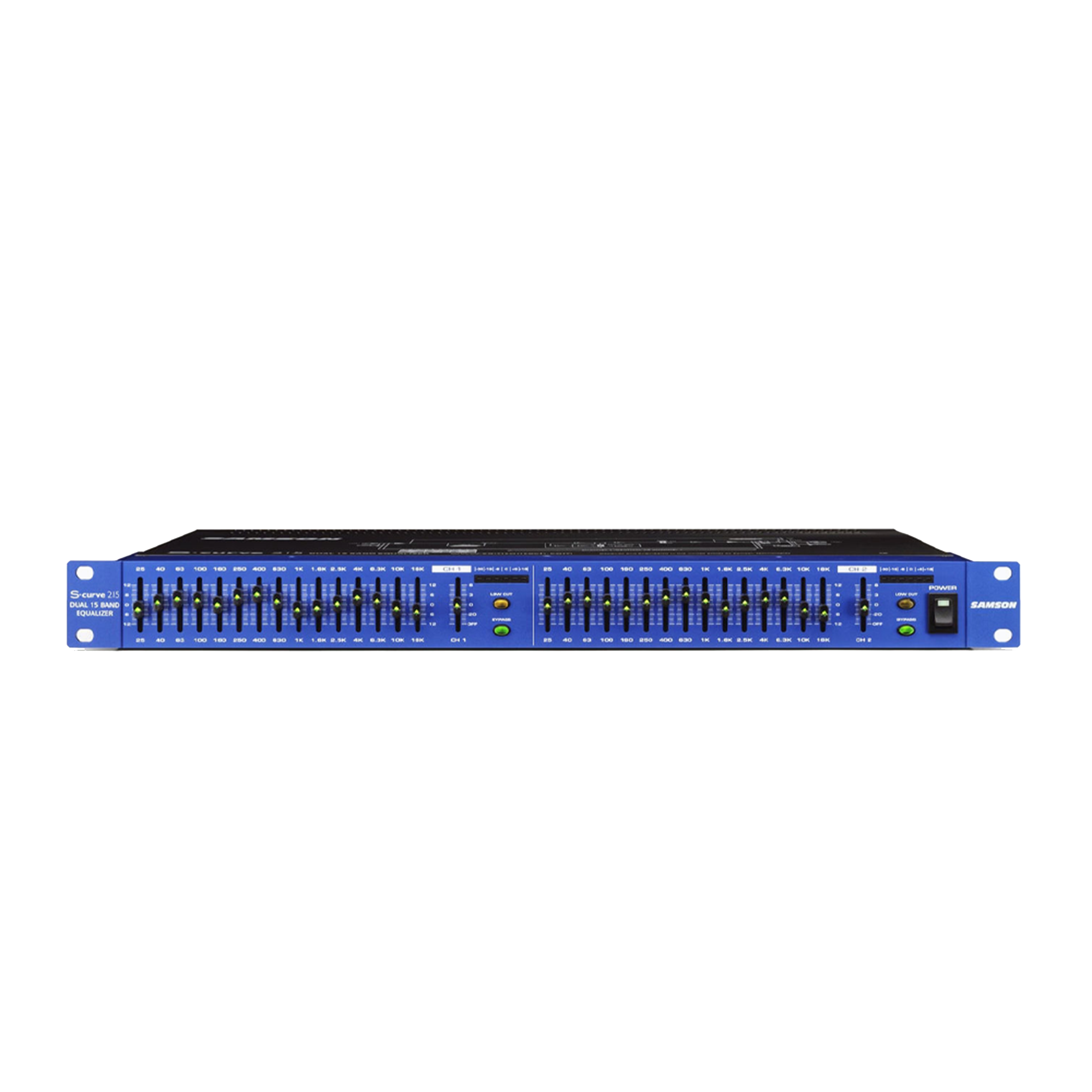

Samson SC215

The Samson S Curve 215 is a professional signal processor that gives you precise tone control over two audio channels. Center hold faders with LED illumination allow you to selectively cut or boost the selected frequency by up to 12 dB. Front panel controls include output level mute, low cut filter and bypass switches, while the rear panel provides electronically balanced inputs and outputs.
Thanks to its low noise design, the Samson S Curve 215 can be used in a wide range of applications including live performance, broadcast systems or recording.
Equalizer Samson S Curve 215 has two channels of 15 equalization bands, frequencies are located in 2/3 octaves in the range of 25 Hz -16 kHz.
A constant Q filter design ensures that the selected frequency domain bandwidth remains the same even when approaching maximum gain or cutoff. As a result, phase shift and intermodulation distortion are significantly reduced, which does not change the audio signal.
The S Curve 215 has 12 dB of gain and cut for each frequency band.
The ultra-low noise circuit ensures superior sound quality.
Low pass filter to remove 80Hz pass hum and noise.
Electronically balanced XLR and TRS inputs and outputs.
The S Curve 215 has two mono channels, either a stereo signal or two independent mono signals.
A button on the front panel (with an LED signal) allows you to turn on / off the signal equalization
The output level control allows attenuation or amplification for optimal signal-to-noise ratio.

Fader LEDs and LED Indicators
The switching relay circuit prevents the speakers from being "struck" when the device is turned on.
Built-in power ensures reliability and flawless operation.
Standard 19" rack mount design, 1U for easy integration into any installation or walk-in sound system.
Solid metal body
EQ Band Frequencies 25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1KHz, 1.6KHz, 2.5KHz, 4KHz, 6.3KHz, 10KHz, 16KHz
Adjustment range +/- 12dB
The input signal is 20 kΩ balanced, 10 kΩ unbalanced
Input connectors XLR or 1/4 TRS Jack
Output signal 60 ohm balanced, 30 ohm unbalanced
Frequency response 10 Hz to 90 kHz ±3 dB
Frequency distortion THD+N less than 0.01% (20Hz-20kHz)
Maximum input level +6 dB
Low pass filter 80Hz
Noise - 85 dB
Power supply 229 volts
Dimensions 482 x 254 x 44 mm
Weight 2.31 kg
